In some circumstances, it is necessary to label an offset from a known location by it’s X an Y components.  Many times this needs to be expressed using cardinal directions (N, S, E and W) such as a call out of a surveyed found iron in relation to the known boundary location.

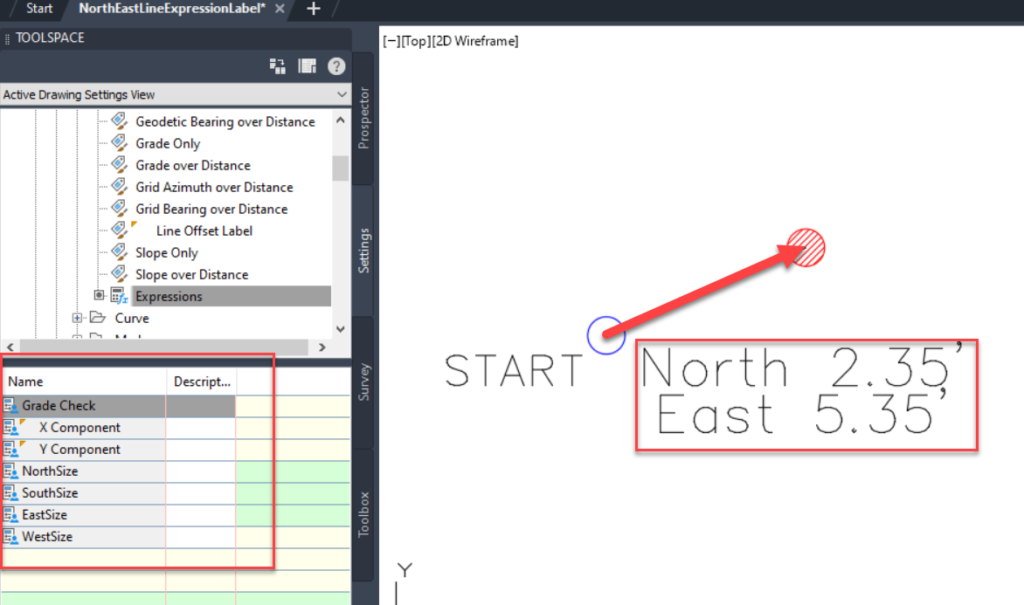

In the following video, I will show you how to create a custom line label expressions that draw upon the start and end coordinates of a line object.  I will utilize these expressions as label properties as well use them in determining visibility of these components as the line direction changes.

If you have any further questions on this technique, please leave a comment below, or email us at [email protected]
