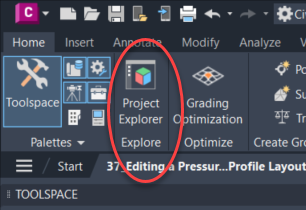

Access Project Explorer

To access the Project Explorer inside Civil 3D 2024, head to your Home tab on the Ribbon, and select the Project Explorer icon as shown below:

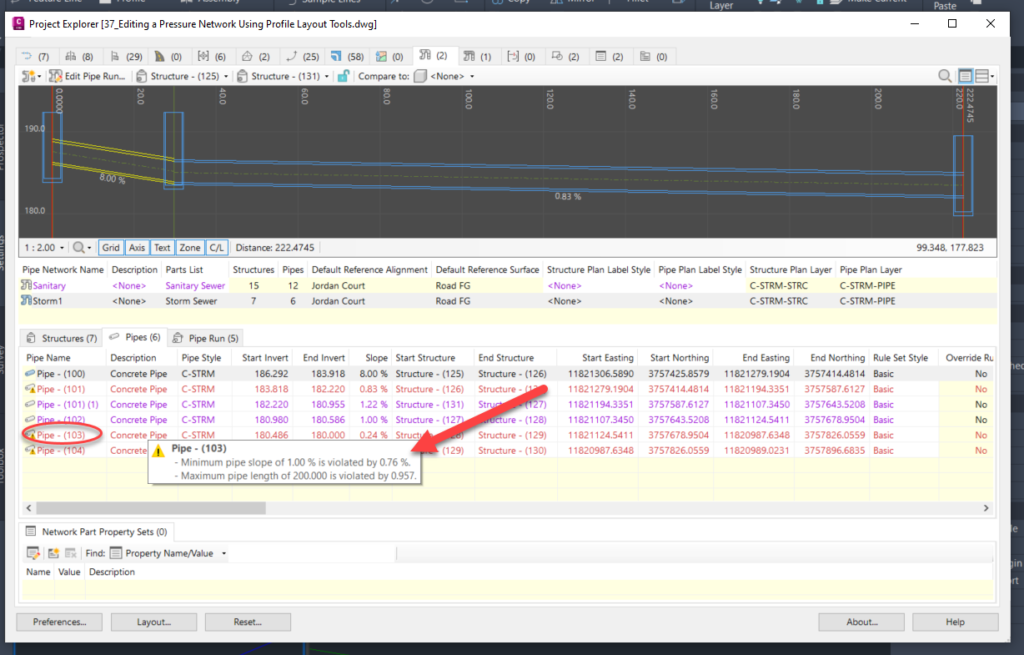

Rule Violation Notification

Notice the text in red, this is giving you a heads up that there is a rule violation inside these Pipes. (check out the video below for a more in depth explanation)

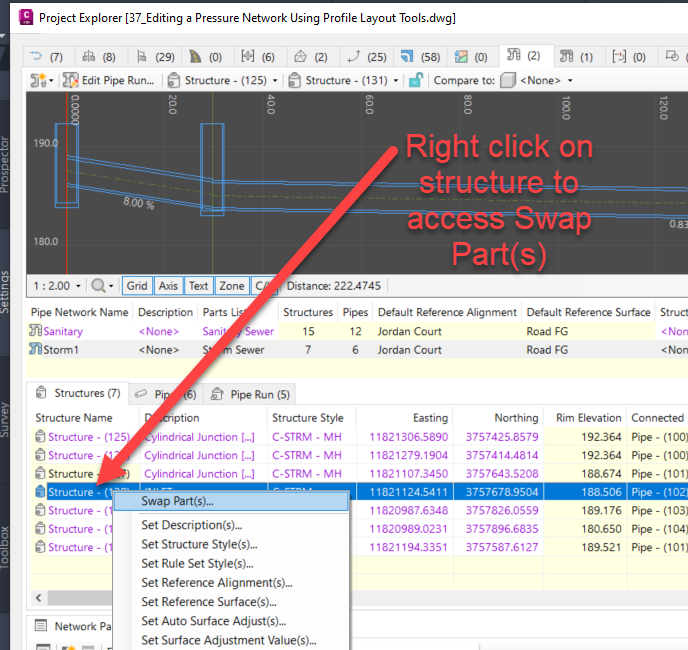

Swap Parts

Swapping parts is as simples as a part selection and a right click (check out the video below for a more in depth explanation):

For other functionalities and a general overview, check out the video here or below:

https://youtu.be/CaWKiu1taPA
