Autodesk Vehicle Tracking is software that Autodesk has added to its lineup for 2014. The software runs within the host application which includes   AutoCAD, AutoCAD Civil 3D, AutoCAD Map 3D, AutoCAD Architecture, AutoCAD Plant 3D, and AutoCAD Utility Design.

This new software is a design solution for integrated swept path analysis and is a comprehensive transportation review software. The dynamics of the software allows engineers, designers, and planners to accurately evaluate vehicle movements on site design projects. Besides being used for vehicle swept path analysis, it also has creation tools for parking stalls and roundabouts.  Here are some screen shots of what the user interface looks like.

Vehicle Tracking Bar

Ribbon

Vehicle Tracking Cars Popup

Vehicle Standards Explorer

The following screen shots depict a vehicle swept path, 3D of that swept path, parking bay creation with report, and a roundabout. It is important to note that all entities have grips that allow for easy manipulation.

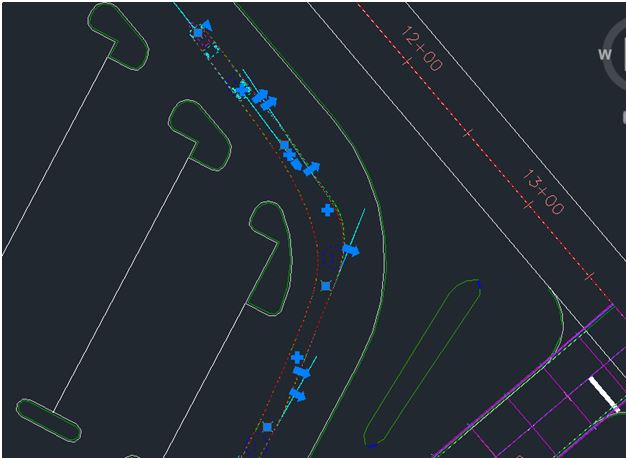

Vehicle Path

Vehicle Swept Path

vehicle tracking 3d truck

3D Animation Swept Path

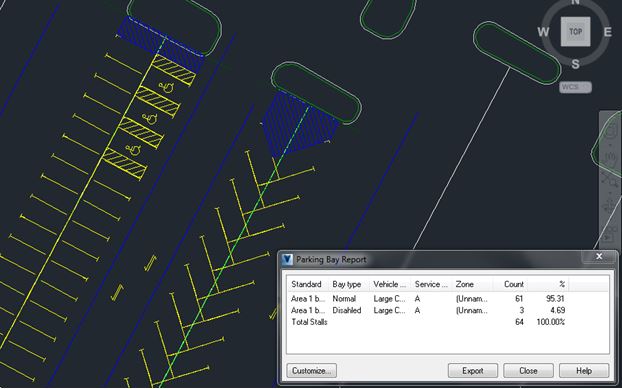

Parking with report

Parking Bay with Report

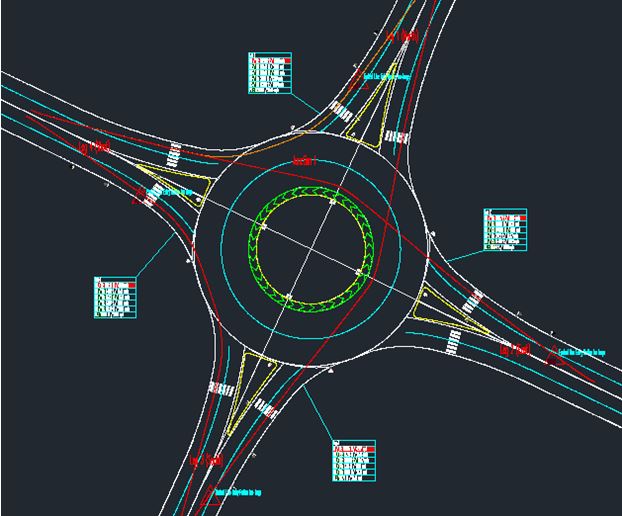

Roundabout 3

Roundabout

I will be doing videos of each of these functions in future posts.
